SMD 3020 LED
  • SMD 3020 LED 0.1 Yellow chip

SMD 3020 LED 0.1 Yellow chip

Specifications
Band:Yuanke
Name: 3020 0.1W Yellow
Model:YK-3020Y
WL:590-595NM
Lumen:500-600MCD
Ra:null
Power:0.1W
Current:30MA
Voltage:3.0-3.2V
Deg:120
Raw material:Copper bracket / pure gold wire
Quantity:3000pcs/reel

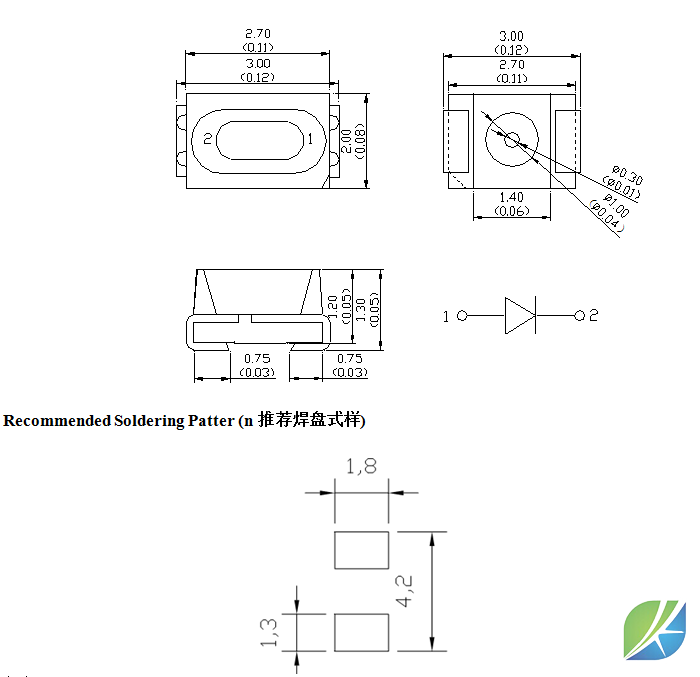

Size:3.0*2.0*1.3MM
Click to download the datasheet
