SMD 3528 LED
  • SMD 3528 LED Red+white bi-color 0.2w chip

SMD 3528 LED Red+white bi-color 0.2w chip

Specifications
Band：Yuanke
Name：3528 Bi-color Red white
Model：YK-3528RW
CCT ：R:620-630NM/W:6000-6500K
Lumen：R:2-3LM/W:8-10LM
Ra：>80
Power：0.2W
Current：60MA
Voltage：R:2.0-2.2V /W:3.0-3.2V
Deg：120
Raw material：Copper bracket / pure gold wire
Quantity：2000pcs/reel

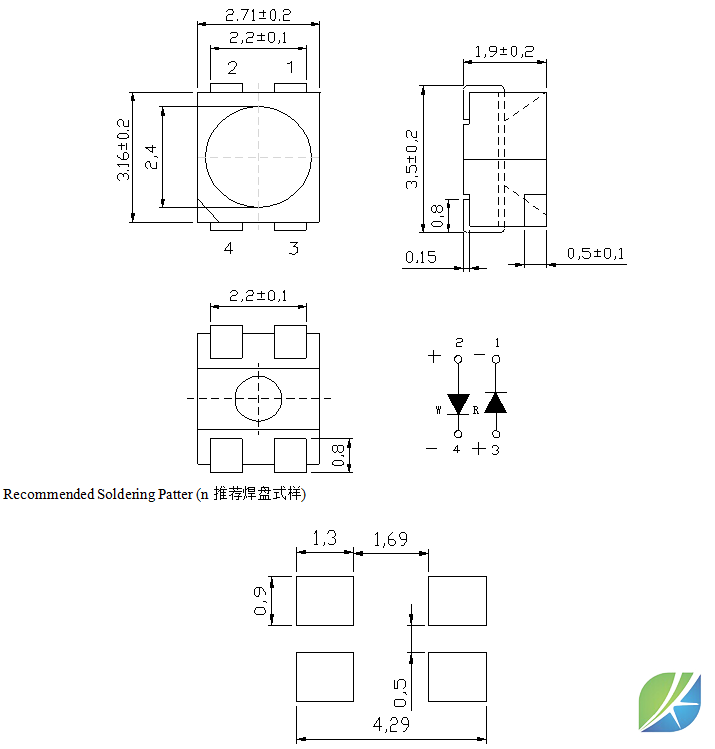

Size：3.5*2.8*1.9MM
Click to download the datasheet
